Monarch Metal Cladding and Rain Screen Systems - Vent Screen

VENT SCREEN

Stock and custom sizes available powder coated or painted black

  • Wide range of possible sizes
  • Choice of mill, painted or powder coated finishes
  • Choice of lengths
  • Allows for air flow behind rain screen panels when necesary

OPTIONS

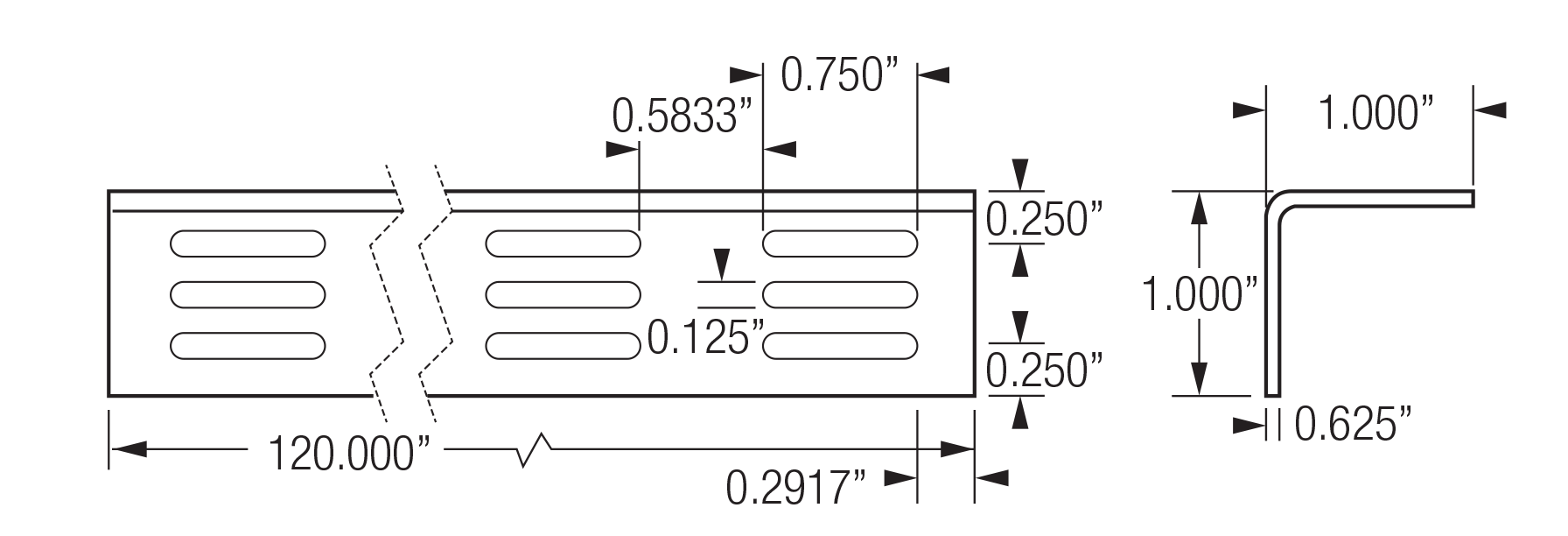

110-002 1” Vent Screen


Monarch Metal Cladding & Rain Screen System - 110-002 1” Vent Screen

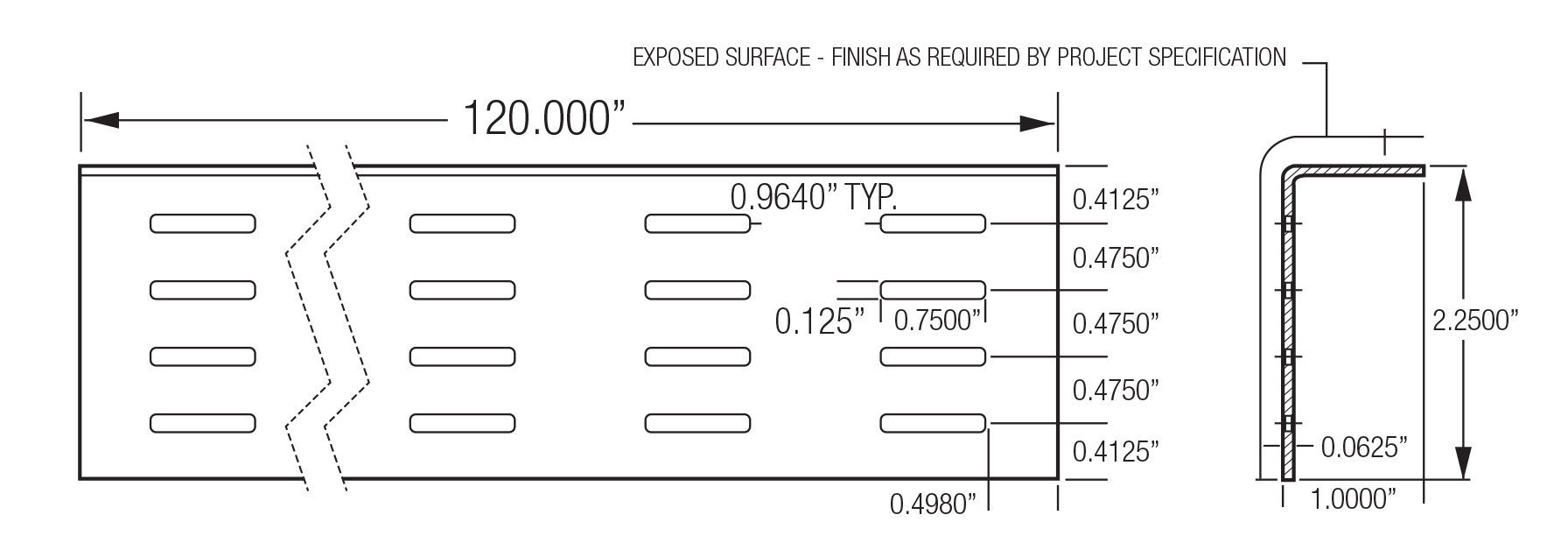

210-001 2.25“ Vent Screen


Monarch Metal Cladding & Rain Screen System - 210-001 2.25“ Vent Screen

CUSTOM

A B t
0.500 1.000 0.063
0.750 1.000 0.063
1.000 1.000 0.063
1.250 1.000 0.063
1.500 1.000 0.063
1.750 1.000 0.063
2.000 1.000 0.063
2.250 1.000 0.063
2.500 1.000 0.063
2.750 1.000 0.063
3.000 1.000 0.063
3.250 1.000 0.063
3.500 1.000 0.063
3.750 1.000 0.063
4.000 1.000 0.063
