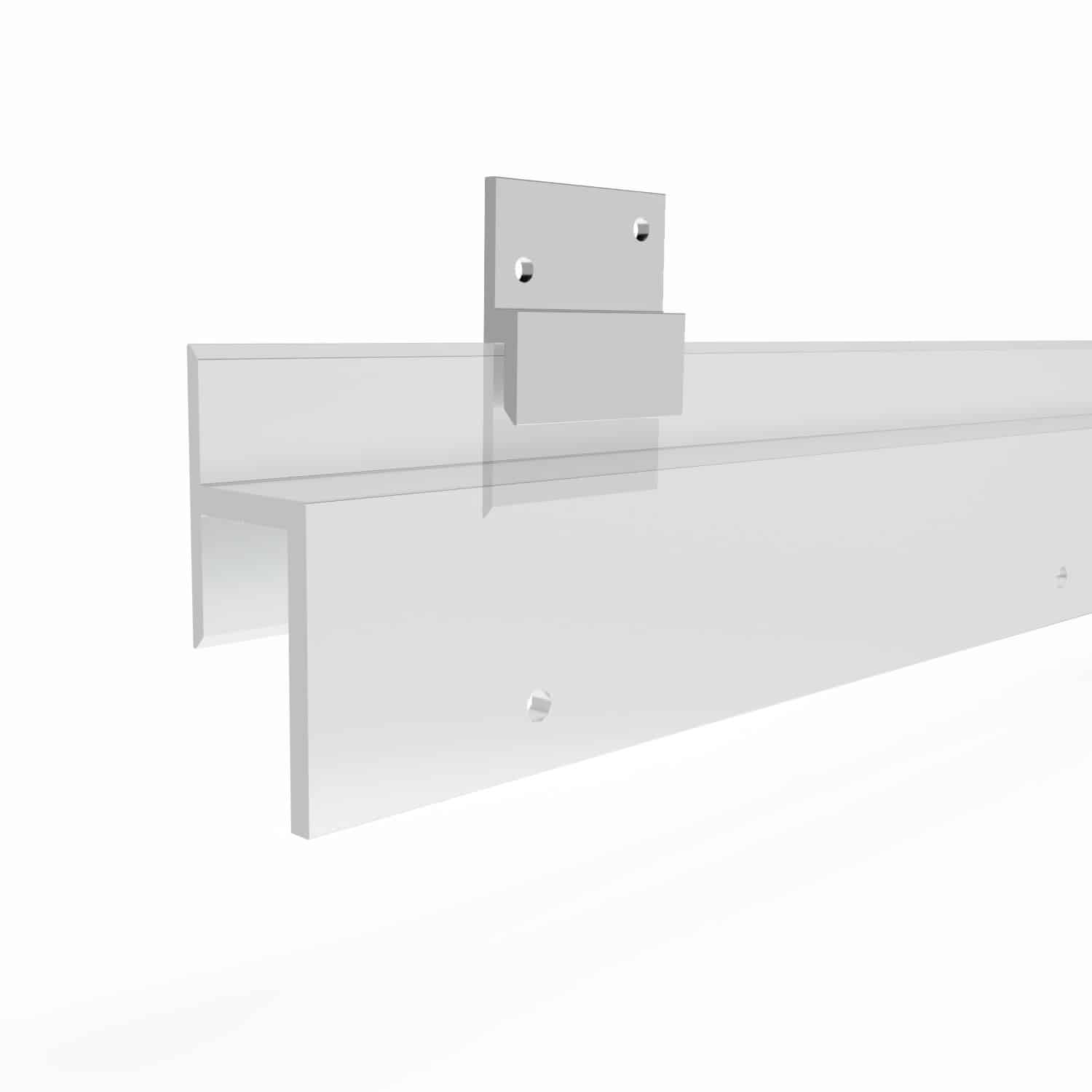

Monarch Metal Z Clip MFPROJ-375

MFPROJ-375

Features:

  • Monarch Z Clip system for hanging interior panels where the installer desires a 1 3/8″ projection
  • 3/4″ clearance required between the top of the panel and the ceiling
  • 6063-T6 Aluminum

DETAILS

MFPROJ-375
Material Aluminum
Stock Clip Size 2 Inch
Stock Continuous Length Mates with MF-EXT1250
Custom Lengths Available Any
Lift Off (1) 5/8 Inch
Projection (2) 1 3/8 Inch
Availability Same Day Shipping
(1) The “Lift-Off” is the amount you need to raise the panel over its resting height to mount the panel.
(2) The “Projection” is the distance that the panel sits out from the wall when mated with EXT-1250.
Monarch Metal Z Clip MFPROJ-375
